Front connection can be open with fuse type terminal blocks | Products
This current location is:Home
> Products
> Guide rail type spring terminals
> Front connection can be open with fuse type terminal blocks

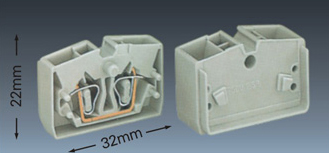

WD4-2.5/C
click: 2406
CapabilityApproval StandardULIECVoltage600V800VCurrent15A24AWire size28-14AWG0.2-2.5mm2 T/W/End plate6/32/4mmHeight22mmRated Surge Voltage/Contamination Class8kV/3Stripping Length9 mmInsulating Material/Inflammability ClassPA/V-0
pdf download：click down
Detailed description
- technical
- Dimension
- Ordering
- Related
| Capability | ||
| Approval |
|
|
| Standard |
UL
|
IEC
|
| Voltage |
600V
|
800V
|
| Current |
15A
|
24A
|
| Wire size |
28-14AWG
|
0.2-2.5mm2
|
| T/W/End plate |
6/32/4mm
|
|
| Height |
22mm
|
|
| Rated Surge Voltage/Contamination Class |
8kV/3
|
|
| Stripping Length |
9 mm
|
|
| Insulating Material/Inflammability Class |
PA/V-0
|
|
pdf down：click down
