> Front connection can be open with fuse type terminal blocks
WD2-6A
click: 2113
CapabilityApprovalStandardULIECVoltage600V500VCurrent10A10AWire size24-10AWG0.2-6mm2 T/W/End plate13/62/2.5mmHeight (NS35:7.5/NS35:15)61.5/69mmRated Surge Voltage/Contamination Class6kV/3Stripping Length9 mmInsulating Material/Inflammability ClassPA/
pdf download：click down
Detailed description
- technical

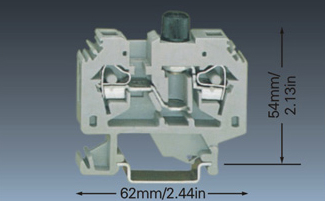

- Dimension
- Ordering
- Related
| Capability | ||
| Approval |
|
|
| Standard |
UL
|
IEC
|
| Voltage |
600V
|
500V
|
| Current |
10A
|
10A
|
| Wire size |
24-10AWG
|
0.2-6mm2
|
| T/W/End plate |
13/62/2.5mm
|
|
| Height (NS35:7.5/NS35:15) |
61.5/69mm
|
|
| Rated Surge Voltage/Contamination Class |
6kV/3
|
|
| Stripping Length |
9 mm
|
|
| Insulating Material/Inflammability Class |
PA/V-0
|
|
