Front connection can be open with fuse type terminal blocks | Products
This current location is:Home
> Products
> Guide rail type spring terminals
> Front connection can be open with fuse type terminal blocks
WD2-6S1
click: 1999
CapabilityApprovalStandardULIECVoltage300V400VCurrent30A41AWire size24-10AWG0.2-6mm2 T/W/End plate8/87.5/2.5mmHeight (NS35:7.5/NS35:15)44.5/52mmRated Surge Voltage/Contamination Class6kV/3Stripping Length13 mmInsulating Material/Inflammability ClassP
pdf download：click down
Detailed description
- technical

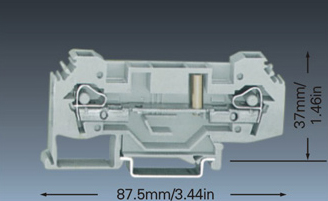

- Dimension
- Ordering
- Related
| Capability | ||
| Approval |
|
|
| Standard |
UL
|
IEC
|
| Voltage |
300V
|
400V
|
| Current |
30A
|
41A
|
| Wire size |
24-10AWG
|
0.2-6mm2
|
| T/W/End plate |
8/87.5/2.5mm
|
|
| Height (NS35:7.5/NS35:15) |
44.5/52mm
|
|
| Rated Surge Voltage/Contamination Class |
6kV/3
|
|
| Stripping Length |
13 mm
|
|
| Insulating Material/Inflammability Class |
PA/V-0
|
|
pdf down：click down
