Wire connector | Products
This current location is:
KV773-208
click: 3193
name number unit safe information 1Ground power cordratingIEC/EN 60664-1The rated voltage (II / 2) [V]450VRated pulse voltage (II / 2) [kV]4kVRated current [A]24ALegend (rating)(II / 2) ? Overvoltage category II / Pollution degree 2Connection techno
Detailed description
- technical
- Dimension
- Ordering
- Related
| name | number | unit |
| safe information 1 | Ground power cord | |
| rating | IEC/EN 60664-1 | |
| The rated voltage (II / 2) [V] | 450 | V |
| Rated pulse voltage (II / 2) [kV] | 4 | kV |
| Rated current [A] | 24 | A |
| Legend (rating) | (II / 2) ? Overvoltage category II / Pollution degree 2 | |
| Connection technology | PUSH WIRE® | |
| Operation type | Direct insertion | |
| Connectable wire material | copper | |
| Single conductor | 0.5 … 2.5 mm? / 18 … 14 AWG | |
| Wire stripping length | 11 mm / 0.43 inch | |
| Total number of connections | 8 | |
| The total electricity digits | 1 | |
| Connection type | Lateral connection | |

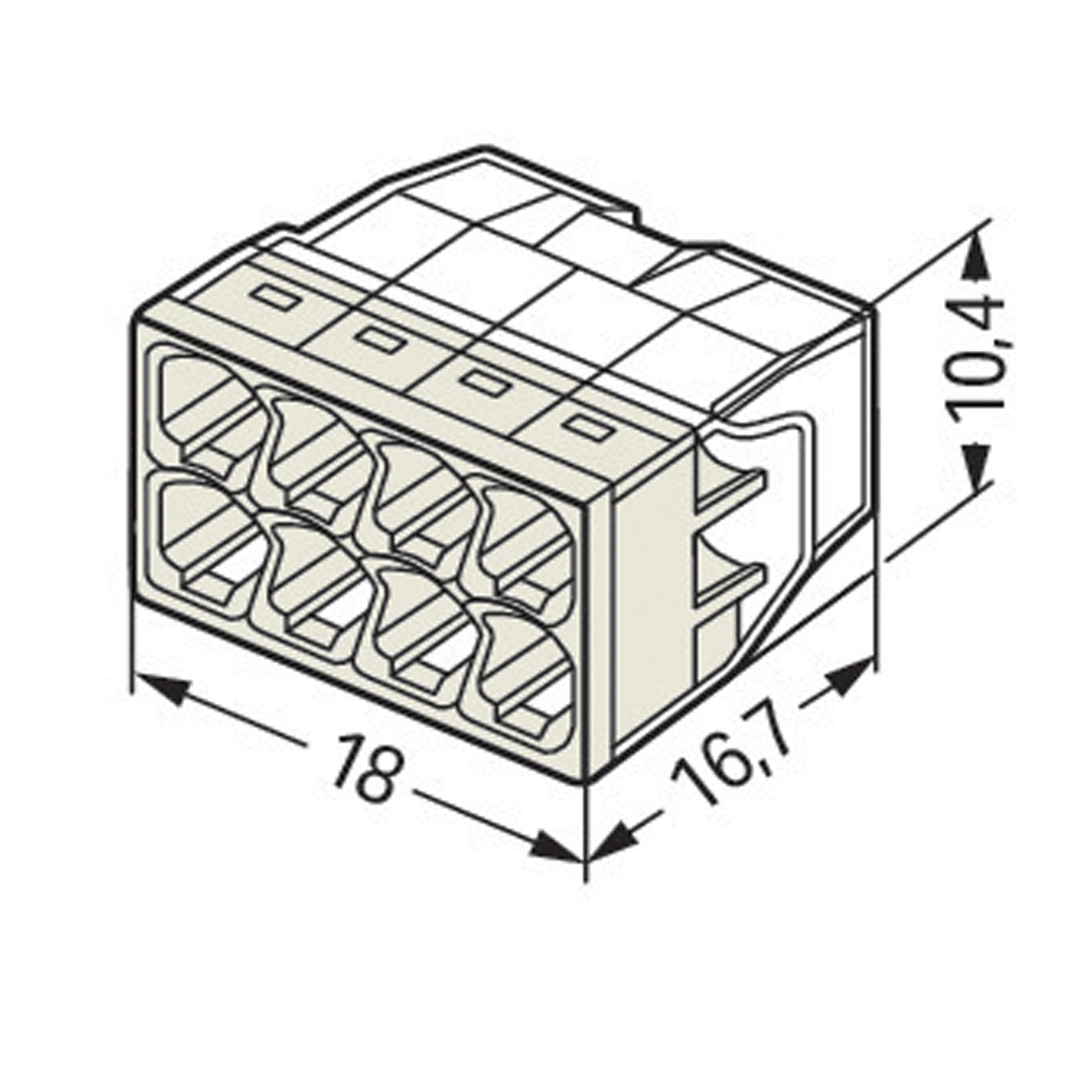

| width | 18 mm / 0.709 inch | |
| height | 10.4 mm / 0.409 inch | |
| depth | 16.7 mm / 0.657 inch | |
| color | light gray | |
| Cover color | light gray | |
| Flammability class according to UL 94 | V2 | |
| The fire load [MJ] | 0.039 | MJ |
| The weight of the [g] | 2.17 | g |
| Ambient temperature | 60 °C | |
| Maximum continuous operating temperature [°C] | 105 | °C |
| T-Marking per EN 60998 | T60 | |
| Packing type | BOX | |
| Main product functions | Steckklemme | |
| The product type | Wire connector |
| name | number | unit |
| safe information 1 | Ground power cord | |
| rating | IEC/EN 60664-1 | |
| The rated voltage (II / 2) [V] | 450 | V |
| Rated pulse voltage (II / 2) [kV] | 4 | kV |
| Rated current [A] | 24 | A |
| Legend (rating) | (II / 2) ? Overvoltage category II / Pollution degree 2 | |
| Connection technology | PUSH WIRE® | |
| Operation type | Direct insertion | |
| Connectable wire material | copper | |
| Single conductor | 0.5 … 2.5 mm? / 18 … 14 AWG | |
| Wire stripping length | 11 mm / 0.43 inch | |
| Total number of connections | 8 | |
| The total electricity digits | 1 | |
| Connection type | Lateral connection | |
| width | 18 mm / 0.709 inch | |
| height | 10.4 mm / 0.409 inch | |
| depth | 16.7 mm / 0.657 inch | |
| color | light gray | |
| Cover color | light gray | |
| Flammability class according to UL 94 | V2 | |
| The fire load [MJ] | 0.039 | MJ |
| The weight of the [g] | 2.17 | g |
| Ambient temperature | 60 °C | |
| Maximum continuous operating temperature [°C] | 105 | °C |
| T-Marking per EN 60998 | T60 | |
| Packing type | BOX | |
| Main product functions | Steckklemme | |
| The product type | Wire connector |
