Wire connector | Products
This current location is:

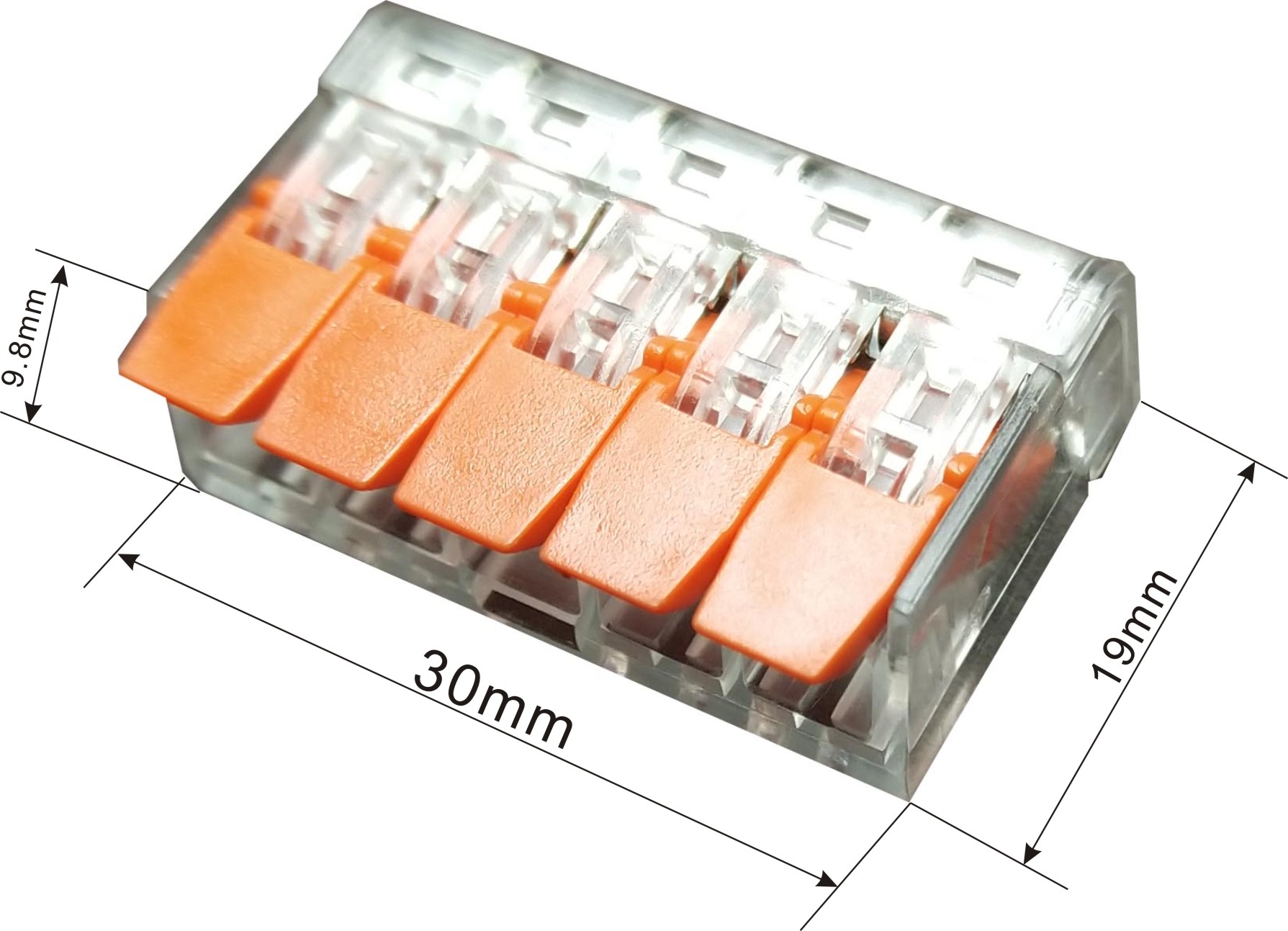

KV221-415
click: 3116
name number unit Safety information 1?Ground power cord??rating?EN 60664??The rated voltage (II / 2) [V]?450?V?Rated pulse voltage (II / 2) [kV]?4?kV?Rated current [A]?32?A?Legend (rating)?(II / 2) ? Overvoltage category II / Pollution degree 2??Conn
Detailed description
- technical
- Dimension
- Ordering
- Related
| name | number | unit |
| Safety information 1? | Ground power cord? | ? |
| rating? | EN 60664? | ? |
| The rated voltage (II / 2) [V]? | 450? | V? |
| Rated pulse voltage (II / 2) [kV]? | 4? | kV? |
| Rated current [A]? | 32? | A? |
| Legend (rating)? | (II / 2) ? Overvoltage category II / Pollution degree 2? | ? |
| Connection technology? | CAGE CLAMP?? | ? |
| Operation type? | Operating lever? | ? |
| Connectable wire material? | copper? | ? |
| Rated sectional area? | 4 mm?? | ? |
| Single conductor? | 0.2 … 4 mm? / 24 … 12 AWG? | ? |
| Multiple conductor? | 0.2 … 4 mm? / 24 … 12 AWG? | ? |
| Thin multi-core conductor? | 0.14 … 4 mm? / 24 … 12 AWG? | ? |
| Wire stripping length? | 11 mm / 0.43 inches? | ? |
| Total number of connections? | 5? | ? |
| The total electricity digits? | 1? | ? |
| Connection type? | Lateral connection? | ? |
| width? | 29.9 mm / 1.177 inches? | ? |
| height? | 8.3 mm / 0.327 inches? | ? |
| depth? | 18.6 mm / 0.732 inches? | ? |
| color? | transparent? | ? |
| Flammability class according to UL 94? | V2? | ? |
| weight [g]? | 4.048? | g? |
| Ambient temperature? | 85 °C? | ? |
| Maximum continuous operating temperature [°C]? | 105? | °C? |
| T-Marking per EN 60998? | T85? | ? |
| Packing type? | BOX? | ? |
| Main product functions? | Hebelklemme? | ? |
| The product type? | Wire connector? | ? |
No file download
